Night Bus (called Owl Bus): Route Design Using Big Data
Policy Overview
The Seoul Night Bus, also known as the "Owl Bus," is the brand name of the city’s intra-city buses that run nine routes exclusively from midnight to 5:00 a.m. Like an owl, animated in the dark with its yellow-glowing eyes, the "Owl Bus" was born to make Seoul’s public transportation service ceaseless, carrying the city’s late night commuters.
Background Information
Insufficient mobility rights for the socially and economically disadvantaged
From when subway line No. 1 opened in 1974 through to the transformation reform carried out in 2004, the Seoul Metropolitan Government has steadily introduced measures to ensure greater convenience and better mobility of the citizens. However, students and workers such as sanitary workers or small business owners, who return home late night, found it hard to benefit from the pre-existing systems. Most of them suffer from the poor working conditions and low salaries, yet they still had to pay the late-night extra charge when taking taxis to return home.
Growing inconvenience due to late-night taxis’ refusal of passengers and illegal operation
During late night and dawn hours, there are far less available taxis than people who are trying to hail a cab. Thus, illegal operations are prevalent by taxi drivers demanding extra fares, causing serious inconvenience to citizens. Additionally, there are practical limitations in controlling such irregularities. Firstly, there is a shortage of police officers responsible for preventing such violations, and even if the police catch an offender red-handed, it is difficult to obtain evidence to prove the driver’s act of refusing passengers or demanding illegal excess fares.
Public-private consensus on the need for new means of transportation to support urban dwellers’ economic activities
Seoul, transformed into a global city within just 50 years, is emerging as a prime location of the global economy. As the city’ industrial, economic and cultural activities expand in size and scope, the citizens reached a consensus on the need for a bus service that operates from midnight to dawn. It was also considered that advanced nations such as Germany and the U.K. have already run such services to promote the safety of the citizens and their rights to mobility.
Goals and Objectives
- Improve convenience for those who take public transportation post-midnight.
- Lessen financial burdens on the economically disadvantaged, such as self-employed small business owners.
- Address citizens’ everyday life concerns by customizing policy measures, using big data technology.
Resources
Budget
To finance the operation of the "Owl Bus," budget provision was needed to pay for the labor costs and the installation of safety facilities such as protective walls for drivers and a speeding prevention system. However, these expenses were covered by the joint management funds for the shift from private to quasi-public bus operation. Consequently, additional costs were not incurred.
Technology
Information systems connected inside the vehicles such as the Bus Management System, the Bus Information Unit and Bus Information Tool enable comprehensive control of the bus operations, and efficient adjustment of intervals while providing users and drivers with real time operation information.
Human resources
The "Owl Bus was introduced without incurring additional costs, and increased operation revenues too. The allocated resources are 45 vehicles and a total of 54 workers; 36 for driving and 18 for management.
Implementation and Expertise
Test Operation of Night Bus at the Request of the Citizens
Since 2012, the Seoul Metropolitan Government has operated the 120 Dasan Call Center and the official blog to better listen to the voices of the citizens, and developed various policy measures based on the information collected through these channels. Along the way, an opinion was received that the late night taxi service is not only difficult to use but also imposes heavy financial burdens on users.
An on-site survey conducted for about six months from October 2012 found it necessary to operate a late-night bus service. As a result, starting from April 19, 2013, the city government began operating two pilot routes exclusively for an after-midnight service..PNG)
Expanding "Owl Bus" routes by up to nine, indebted to communication with the citizens and cooperation from the private sector
For three months following the launch of the test operation, the service was extremely well-received by 220,000 people, making it justifiable to raise the number of service routes. The seven new lines were determined by taking into consideration the heavy concentration of people on the move during late night hours. Accordingly, the SMG conducted on-site research and analyzed late-night mobile phone call volumes collected by the Korea Telecommunication to construct a radial-shape network linking outer districts of the city with the hub areas such as Jongno and Gwanghwamun. Also, the brand name "Owl Bus" was chosen by the government through a public contest held in June. With the letter “N” in the bus number, the service began its full operation on September 16, 2014.
Citizen’s voluntary participation in selecting the brand name, the initial ‘N’ and the character image
With news regarding the Late Bus spreading over SNS channels, citizens voluntarily suggested to name the late-night bus. Thus, the city government invited public ideas for the naming of the service and, as a result, the brand name "Owl Bus" and "N (Late Night)," and the character that portrays an owl operating a bus were selected. These symbols have been used to mark bus stop signs, bus route map and numbers and distinguish the late-night buses from ordinary ones.
Greater safety and enhanced convenience for citizens
The LED lighting panel attached to the front and sides of the bust help passengers to easily recognize even in the dark from a distance. Also, every vehicle is fitted with a device to prevent it from exceeding 70km/h. Partitions protect drivers from possible attacks of drunken or aggressive passengers. Additionally, the network of emergency contacts was established with nearby police stations to swiftly respond in case of emergency.
Conflict Management: Mediation and Resolution
As the service is the first of its kind in Korea, policymakers struggled to shape action plans in detail. Particularly, the biggest task was to address issues such as selection of the routes, ensuring efficient operation and passengers’ safety and convenience.
☞Selection of bus routes: Big data analysis of the KT call volume during late night hours
During the initial stages of mapping out how to operate the Seoul Night Bus, the issue of selecting bus routes emerged. The municipal government color-coded regions by call volume based on the data provided by a private communication service provider, KT. Then, it analyzed the number of passengers who get on and off at each bus stop in the heavy-call volume regions and connected the dots to lead to the most pertinent routes.
☞Efficient operation: Measures to optimize the operation interval
As the intervals between buses grew longer in the longer distance routes, the SMG introduced the simultaneous dispatching system in which vehicles depart simultaneously from both ends of the bus line, thereby minimizing the gap in the intervals between different directions. Passengers can also easily transfer at the major intersections of different routes and the interval was optimized to to 30 to 40 minutes in consideration of the demand and frequency.
☞ Convenience and safety of passengers: real-time operation information
The service provides citizens with real-time operation information. Anyone who wants to take the "Owl Bus" can check the arrival time and location of the bus stop in advance through the website or smartphone apps. Meantime, given that the service operates late night, safety measures were critical to protect citizens. Besides the protective partition and speeding prevention device, it was made mandatory to inspect the vehicle before driving. The drivers with proven qualifications are also well remunerated so that they do not have to take on other vocational activities during the daytime hours and can fully concentrate during night time driving.
Results and Evaluation (Cause of Success and Failure)
Safe and Affordable Means of Transportation for Citizens
The numbers of "Owl Bus" passengers are on the constant rise. A total of 1,735,000 people have taken the buses from September 2009 to June 2013, making the daily average passengers stand at around 7,000. As for economic aspects, passengers are expected to save approximately KRW 6,000 as the "Owl Bus" charges KRW 1,850 per trip while the average taxi fare in the same timeframe costs KRW 8,000. Given that the most of the passengers are students, self-employed small business owners or workers, the service is expected to help stabilize their household finances.
Meantime, most passengers are concentrated in the timeframe from midnight to 03:00, when students and workers return home completing their after-school self-study and night duties. As the unfrequented time tends to leave them more vulnerable, the "Owl Bus" is considered to help them move more safely. Notably, the "Safe returning-home service" provided in cooperation with the nearby police stations reinforce the safety.
<Average number of passengers by hour >
| Midnight | 01:00 | 02:00 | 03:00 | 04:00 | 05:00 | Sum | |
|---|---|---|---|---|---|---|---|
| Daily average number of passengers | 1,056 | 2,047 | 2,008 | 1,621 | 770 | 111 | 7,612 |
| Proportion | 13.8% | 26.9% | 26.4% | 21.3% | 10.1% | 1.5% | 100% |
Income redistribution for the economically disadvantaged
Before the operation of the "Owl Bus," one had to pay up to tens of thousands of won to move from the city center to a residential district outside the city. However, they now can complete their journey with just 1,850 won. As the savings will lead to higher disposable incomes, income redistribution effects are expected, too. As of 2013, the SMG estimates nearly KRW 14.1 billion worth of economic benefits have been redistributed.
Applicability (Implications)
Expansion of new IT markets in related areas
The Seoul Night Bus has helped invigorate culture and IT technologies. The growing post-midnight mobility has vitalized late-night activities such as movies, city tours and shopping. With the Wi-Fi network installed in the vehicles, the communication industry is expected to grow further and the ability to process various transactions on the move e.g. financial ones, has improved the quality of urban life.
Distribution of the manual for other local governments to benchmark
As residents of other cities express their interest in the "Owl Bus," through SNS channels, local governments and research institutes have inquired about the process in the run-up to the introduction and requested lectures on the "Owl Bus." With many metropolitan governments expressing their interest, the Busan Metropolitan Government has already begun operating the late night service by extending the operation hours of existing intra-city buses and other cities such as Ulsan and Daejun consider introducing it, too.
Period of Policy Enforcement
Two demonstrative routes were operated from April to July of 2013, and from September 12, 2013, the system was expanded to 9 routes.
Background Information
1) Night Bus
Economic activities in Seoul are carried out 24 hours a day, in reality. Countries that display a considerable amount of traffic at night time mostly rely on taxis. However, these are not a sufficient alternative due to a lack of supply compared to excessive demand, poor service (rejection of passengers), safety problems, and high costs during peak night hours. Some of the citizens that participate in night economic activities are service consumers, including restaurants and entertainments, and while others include low income workers, businessmen and company workers, as well as students. Thus, a lack of public transportation at night time signifies the restriction of economic activities at night.
In certain night service corporations, such as ‘clubs’ in large cities of England, leased buses are individually operated to provide transportation to the citizens who reside in adjacent suburbs or small cities. Seoul city is reputed as a ‘city that is not outdone’ by these European cities in terms of its active night economic activities, including entertainment and pleasure services. Thus, although the chauffeur service is broadly used and somewhat established based on a firm demand without depending only on taxis, taxis or chauffeurs are not reasonable means to the young class and those of a low income, and thus, the selection of night transportation means is insufficient.
The citizens expressed this inconvenience through an electronic governmental communication channel, and the city assessed the introduction of night buses.
Meanwhile, since Seoul city was interested in using big data in administration, the intention of the application of big data in the transportation field was a reflection of the citizens’ interest. Upon analyzing 600 thousand cases at the ‘120 Dasan Call Center’, one of the Seoul citizens’ complaint channels, it was displayed that the citizens had the greatest interest (25.5%) in the transportation field. Other than establishing the night bus route, big data was also used in the reduction of traffic accidents.
2) Reducing Traffic Accidents
The number of deaths from traffic accidents in Korea is the highest among OECD countries, which is two to four times the amount of the generally perceived advanced countries. The number of deaths per 100 thousand of the population (2009) was 4.8 in Seoul, 2.4 in London, 1.6 in Tokyo, and 1.4 in Berlin. However, this number of deaths has been decreasing over the past three years due to the initiation of improvement projects in areas with frequent accidents. Consequently, the number of deaths decreased from 501 (2009) to 378 (2013), and the number of injured decreased from 63,584 (2009) to 56,761 (2013). This is the result of the 24.5% reduction of casualties with the improvement project in 266 areas of frequency accidents over the past three years. Various policies have been initiated in attempts to reduce traffic accidents, in relation to the initiation of the customized traffic safety measures for the elderly and children. This is a support project of luminous vests and safety indicators on handcarts for all elderly citizens collecting waste paper (6,354 people) and the expansion of elderly protection zones (more than 20 zones each year), and policies establishing traffic safety experience classes for the elderly. The obligation of traffic safety education upon renewing driver’s licenses has also been initiated. With the expansion of children protection regions (more than 50 regions each year), safe commutes to and from schools is supported by the operation of traffic safety instructors for elementary school students within these regions. Furthermore, policies such as the expansion of pedestrian crossings (105 crossings including 50 diagonal crossings) and intensive control of illegal stopping on sidewalks (138 regions), contribute to reducing traffic accidents involving children.
The Importance of the Policy
Implications from Developing Countries:
Seoul is a city that competes for its position among the top in the world in terms of the level of planning and supply of public transportation. However, at the time the demand for night buses was recognized, an additional budget for the service was not prepared. As a result, the means devised from the mission and condition of supplying customized services diligently responding to the demands of the potential users without wasting the budget in the standard plan and supply of the bus routes was the provision of an incremental service expansion of services by assessing the revealed preference and route design using big data. In this sense, there are remarkable implications to the policy makers of cities that are unable to provide public transportation services within situations where such need has been verified, due to financial restrictions and of cities that have poor traffic information required for public transportation service supply plans.
First, poor data infrastructure is a problem that is commonly faced by most developing countries. Regular surveys on passengers are conducted in countries with abundant resources and where the traffic count on roads comprises the basis of constructing traffic data. Since such research costs are very high, it is difficult for traffic data to be properly carried out in poor countries or developing countries.
Second, even if resources are not particularly weak, if mobile phone usage data can be used to provide consumer-customized bus routes, the city government could provide multiplied convenience to the citizens by using the resources to be used in the construction of traffic data on the development of other public goods. The means of using mobile phone data on traffic plans is a field that is interested and developed more in advanced countries than in developing countries.
Even in developing countries that do not have the data required for city planning, including traffic data, the users display a mobile phone possession rate of near 100%, particularly in large cities. These countries have the basis for similarly using big data on city plans, including public transportation planning.
The large cities of developing countries have a relatively low number of cars and, thus, have a greater need for public transportation than rich cities. Regardless of this, bus networks are not properly formed in most cities. The commonality of the cities, such as Jakarta, Hanoi, Phnom Penh, and Kigali, is that there is a significantly high number of motorcycles over public transportation. Motorcycles have much greater flexibility and convenience than cars in certain aspects, and provide reasonable speeds to be depended on as a transportation means in a large city. However, motorcycles do not have the efficiency of public transportation and this could reduce traffic energy and the usage of roads by transporting a large number of passengers at one time. Thus, the excessive use of motorcycles is already becoming the main cause of worsening atmospheric contamination and traffic congestion in mega cities of developing countries where various city problems are surging.
Motorcycles are the method of transportation selected by the citizens as a means that most proficiently satisfies the needs of transportation with restricted resources and the absence of adequate public transportation. However, if a suitable method of public transportation is not provided at an opportune moment by considering motorcycles as an appropriate long-term measure, the traffic in these mega cities will gradually face a serious problem. That is, various cities will experience growth and development where individual commute patterns become permanent, and as the residents’ incomes increase, motorcycles in the city will soon change to cars, which will restrict sustainable development.
Seoul’s night buses, which provide optimal services at affordable costs through route plans that use big data, lack official data, but are part of a policy that has a high value of application in developing countries with a very high possession rate of mobile phones. The bus routes are planned using already existing mobile phone history data, and the service is gradually expanded to prepare a basis of public transportation. Thus, there is a need to change the direction of the current unsustainable move.
There has been a case in which the IBM research team devised a bus route in Abidjan, the capital of Ivory Coast, where there were no previous bus route networks, using the mobile phone data provided by the global communication company of Orange in 2013 (BBC 2013).
Planning a Consumer-focused Policy
Most existing policies did not attempt in understanding or considering the main body of society and delivery system using public services due to the planning and execution of the supply under the supervision of the government. The policy also has a special value in preparing an opportunity that can more accurately reflect human social perspectives to a scientific approach by designing a service focused on big data which observes and analyzes the behavior of the main body of society, exceeding the traditional restrictions of planning. It is also noteworthy that private information and public information were combined, unlike existing policies that usually depended only on public data. There is also a significance in that this is Korea’s first case of attempting to plan an optimized policy using big data in a city traffic policy, and simultaneously, it proposes various possibilities for the use of big data.
Ahn, Y. J. and Kim, S. I (2014) analyzed the cases of use of big data, including overseas cases, by recomposing Peter Morville’s honeycomb model for the verification of user experience, wherein Seoul city’s night bus was evaluated as a case that satisfies all aspects of usefulness, usability, credibility, accessibility, and public value as shown in Table 1 below.
Table 1: User Experience Evaluation Table on Using Big Data in the Public Sector of Seoul’s Night Bus
| Usefulness | The demand of night buses was recognized after analyzing data from Dasan Call Center, and it was determined that this service would be provided |
| Usability | After demonstratively implementing two routes, the number of routes was expanded to 9 routes |
| Credibility | The predicted values obtained by analyzing the arrival/departure points from the traffic card and 3 billion cases of telephone calls were almost accurately consistent with the actual population at night time |
| Accessibility | High accessibility where anyone can access and obtain necessary information |
| Public Value | Focus on the purpose of public value and not on the purpose of private profit |
Source: Ahn, Y. J. & Kim, S. I. 2014 Partial editing of p.447
Relevance with Other Policies
Goals of the Policy
Night Bus
1) By concentrating services in areas with high demand of night transportation, high bus usage is achieved in order to enhance user satisfaction and support night activities (this service can easily be cancelled if the usage rate is low)
2) Safe return of citizens to their homes during night time (midnight to 5am)
Reduction of Traffic Accidents
Reduction of fatal traffic accidents -> Deaths from traffic accidents is reduced by less than 1/6 (430-> 70)
1) Combined repair of the traffic environment in the residential zone / introduction of the garage verification system in the residential zone
2) Improved safety of public transportation / reinforced security (prevention of crime) in public transportation
3) Reinforced speed restriction of vehicles on the main roads in the city (60-> 50km) / Construction of a system that immediately responds to all fatal traffic accidents
4) Operation of ‘Seoul EYE’ the dynamic control management system / 24-hour operation of the Seoul safety situation room
(Seoul Traffic Vision 2030)
Main Policy Contents
-
Night Bus
- Decision Making Group: Private Cooperative
- Policy Participating Group: Seoul city, KT (communication company)
- Other Parties of Interest: Taxi corporations, bus corporations, chauffeur corporations, citizens
- Process of Decision Making:
- Began at the request of citizens and developed as a service product through the cooperation of private and public organizations
Due to restricted resources in the beginning of the service and in a situation where there was no public night bus service, a demonstrative operation of restricted routes was necessary. And, in order for the demonstrative operation to perform its role as an accurate test, it was most important to apprehend the demand of night buses to plan optimum bus routes. Although there might be a demand, if the optimal locations are not properly understood to result in a poor usage rate of the test, there will occur the risk of arriving at the conclusion that night buses are unnecessary.
Here, rather than depending on existing bus operation data or the intuition of professionals, Seoul city decided to apprehend the actual demand of night buses using big data, particularly, taxi smart card data and communication history from mobile phones, which had been discussed locally and internationally for its usability at the time. Through several meetings between Seoul city employees and private professionals, the usability of big data was examined, and a joint initiation strategy was prepared. Specifically, the call location information was processed as ‘destination data’ and the billing address was processed as ‘destination data’ to deduce a floating pattern, which resulted in the determination of the night bus routes.
To achieve this, Seoul city concluded an MOU with KT Corporation and prepared a method of obtaining personal location data from mobile phone call history. Although KT Corporation recognized the value of call history, KT could not use the data due to the issue of the violation of privacy. Thus, the opportunity of using this data within the frame of a project for public benefit was welcomed by KT, and they decided to provide the call records to Seoul city, under the condition that the privacy of the consumers would be protected through methods of separating data field related to personal profiles.
After successfully operating the demonstration run of 3 months, 3 billion cases of calls from KT over the month of March 2013 were analyzed. As a result, it was indicated that the greatest floating population at night time was in Hongdae, followed by Dongdaemun, Shillim, Gangnam, Jongno, Garak Market, Shinchon, Nambu Terminal, Kondae, and Apgujeong. Upon analyzing the data of taxi rides during night time, Gangnam displayed the highest demand, followed by Shillim, Hongdae, Kondae, Dongdaemun, Gangbuk Office, Shinchon, Cheonho, Jongno, and Youngdeungpo. The call data and 5 million cases of taxi rides at night time were combined to visualize a pattern of the floating population on a map using the geographic information system (GIS) of Korean ESRI, which was analyzed on the ‘Night Bus Route Establishment Support System’ developed by the city.
The entire region of Seoul was divided into 1,250 cells of 1km radii, to indicate the floating population and traffic demand, and the existing bus routes, floating population at different times and days, and the pattern of traffic demand were analyzed. In addition, a reanalysis process was conducted, including a calculation of the weight of the floating population near the routes, to deduce the optimum routes and intervals (Seoul City, 2013). As a result, the routes were selected by constructing a radial network connecting 9 suburbs surrounding Gwanghwamun (Fig. 1). The results of the simulation verified that the predicted values obtained from the big data were approximate to the actual values, and thereby, the night bus routes were finalized.
Although N61 had been planned to pass through Nambusunhwan-ro and Dongil-ro at the beginning of the planning phase, the results of the analysis displayed that there was a high floating population in Hyoryeong-ro and Neungdong-ro, near Kondae and Nambu Terminal Station. Therefore, the route was modified, and N13, which was planned to pass through Jangchungdan-ro, was also modified to pass through Dongho-ro. With respect to the route number, N refers to night and the two numbers indicate the locations of departure and arrival. Seoul city was divided into 7 areas, with each area allocated with numbers from 0 to 6.

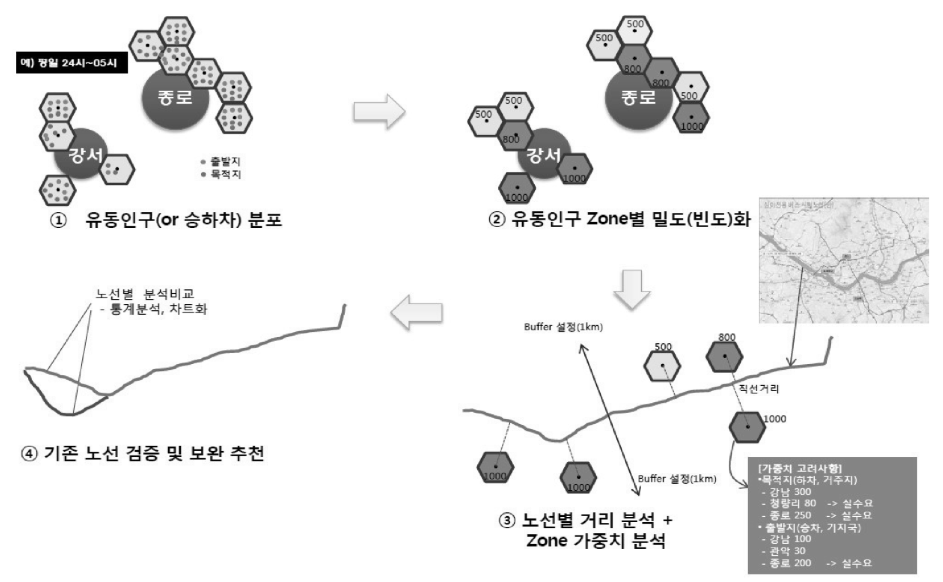

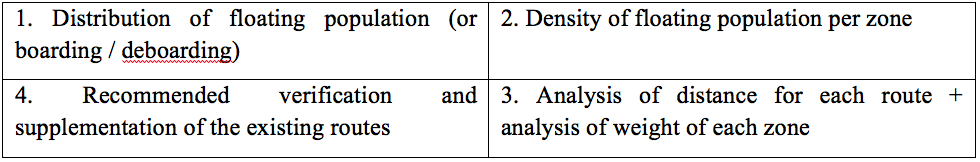

Figure 1: Process of determining routes, intervals, and stations of the night bus
Source: Ma, K. K. 2015; Seoul City, 2013 (Seong, J. E., et al., recited from 2014)
Main Features of the Service
1) Demonstrative operations were conducted on two routes for three months from April 19, 2013, and as a result, it was displayed that the number of accumulated passengers was 218,212, which was higher than expected. This was calculated to a daily average of 2,098 night bus passengers, with an average of 175 passengers per bus per day. This is 65 higher than the average of 110 passengers per day on standard buses.
After officially initiating 9 routes in September 2013, the official data was published in November 2013. According to this data, a total of 304 thousand passengers used the service for 50 days, which equates to an average of 6,079 passengers per day. Among which, 64.6% users were office workers, 23.5% were chauffeurs, and 11.9% were students (Seoul City, 2014).
With respect to the days of the week, the usage rate was the highest on Saturday morning, with 55.2% of the users concentrated within the 2 hours from 1am to 3am. The usage rate was relatively low during 12am to 1am and 4am to 5am, when subway and local buses were in operation. The usage rate was also affected by the distance of operation, and whether the route passed through subway stations, Jongno, and Gangnam. That is, the five routes where the number of passengers exceeded the average number of passengers had operating distances of over 70km, passed through more than 20 subway stations and passed through Jongno or Gangnam.
All 9 routes are displayed on Fig 2 below.
Figure 2: 9 Night Bus Routes
Source: Seoul City 2014.
Three routes pass through Seoul Station, five routes pass through Dongdaemun, three routes pass through Jongno, and three routes pass through Gangnam Station.
3) The interval between buses is 40 to 45 minutes, which is rather long, but the buses would arrive and depart at the exact times in comparison to night buses. The fare is 2,150 won (Seoul City internal data, 2016) when paid with the traffic card. Buses on the four routes with the longest distances were planned to leave simultaneously from the garages on both ends, in order to minimize the space between intervals in both directions. Buses on the four routes with the shortest distance were planned to drive the full routes by turning at Seoul Station.
4) Through an open contest in June 2013, the brand name ‘Owl Bus’ was selected, and a character image of an owl driving a bus was designed. For the Owl Bus to be easily distinguished, the character is indicated beside the route number on the LED display on the front and sides of the bus.
Figure 3: Logo selected in an open contest and the night bus electronic display
5) In a survey conducted on 500 passengers after three months of operating two routes, the night bus received a service satisfaction score of 80.15 points (74.3 points for standard buses), and 88.4% of 1,000 respondents indicated that they wanted ‘the expansion of the service’ in an additional survey. Thus, the service was expanded to 9 routes from September 12 of the same year.
6) The additionally selected 7 routes used the updated big data, as a result of which displayed that the floating population was concentrated in Gangnam, Hongdae, Dongdaemun, Shillim, and Jongno during night time. Thus, the initial plan was modified on six routes. Conclusively, a radial network that passes across the city from Gangnam was composed.
7) As a safety device, the speeding prevention device, which restricts the speed of the buses to 70km, was equipped on all night buses, and a partition wall was installed for the safety of the driver. Furthermore, an emergency contact network was constructed with nearby police stations in case of emergencies.
8) In order to prevent the drivers from participating in other work during the day time, night time exclusive drivers were employed, with an increase in their wage from 1.75 million won to 2.14 million won, and it is planned to allow the transfer of the night time drivers to day time based on their work evaluation.
9) A method of returning the profit to the operating corporations is being examined.
10) Illegal operation of cars on the bus routes that may conflict with the night buses are to be intensively controlled with the cooperation of the police (pursuant to Articles 81 and 82 of the Passenger Transport Service Act).
- Reduction of Traffic Accidents
| Seoul City has established a traffic accident measure by analyzing various big data of 140 billion cases regarding the traffic accident history, weather, vehicle speeds, digital operation gauge, and floating population obtained by public and private organizations, and will be officially enforcing a traffic accident measure from early this year. |
- Preparation of the Traffic Accident Measure through Big Data Analysis
| The analysis of big data comprises an integrated analysis of the floating population, weather during relevant time periods, and surrounding traffic safety facilities, after reviewing the location and time of an accident from traffic accident history. To accurately analyze big data, Seoul city has composed the TF team for the collection and analysis of big data for one year. The TF team analyzed the correlation between data that were scattered, to reveal patterns in traffic accidents, and established a traffic safety measure based on the ‘analysis result of the five categories’. |
- Highest number of pedestrian deaths among OECD countries
- Two to Four Times the Number of Deaths from Traffic Accidents in Comparison to Main Cities of the World
- Remarkably high ratio of injured compared to deaths among Korean cities
Technical Details Night Bus
Furthermore, the spaces between each bus stop were connected with a line, and any overlapping lines were thickened to visualize the system. Here, the demand for the night bus was calculated by reflecting the floating population. During this process, the modification of bus stops and routes was proposed concerning 8 routes, which was partially accommodated. Through cooperation with bus policy organizations, routes with greater demands and floating populations were created (Seoul City, 2013).
Figure 4: Seoul City Night Bus Intensive Analysis Chart
Source: Seoul City, 2013
- Reduction of Traffic Accidents: http://www.slideshare.net/crashs/ss-45876300
Policy Effects
Night Bus
1) The night bus route, which was designed with the use of big data, achieved an amount of transportation that exceeds 5 to 10% of existing routes.
2) The citizens that participated in night activities saved transportation costs, and the usefulness of a safe, convenience, and affordable night transportation means is estimated to have increased the participants’ night activities (verified by the research of sales at night spots near the routes). In fact, the female population participating in night activities increased by 11% (Seoul City 2014).
3) There is the effect of preventing night crime (possibility of collecting substantive data).
4) The rejection of passengers by taxis reduced by 8.9% as an additional effect.
5) Within the increasing domestic and international interest in the usability of big data, this became a very practical case that noticeably relieved the inconvenience of the citizens at a small cost. Thus, it displayed a future-oriented aspect of administration that moves with innovation and dynamicity.
6) This policy was selected as the second place in the top 10 policy vote during the first half of 2013, and was reported in various national and international media outlets.
Currently, there are increasing domestic and foreign organizations and public officials that wish to share Seoul city’s big data administration and place Seoul city as an informatization benchmarking city model. As an example, the CEO of NESTA, the British National Science, Technology and Arts Foundation visited Seoul city to inspect the night bus route establishment system, and visited other cities and organizations, including Taipei in Taiwan, Jakarta in Indonesia, and the World Bank to disclose a case publication in relation to using big data.
Reduction of traffic accidents
(Composition of institutional effect/response means for each group in the link below)
- Traffic accidents involving child pedestrians
- Traffic accidents involving elderly pedestrians
- Traffic accidents in island bus road stations
- Accidents from drunk driving
- Analysis of dangerous driving behaviors
Challenges and Solutions
Challenges in the administrative procedure to use big data
IT technologies are necessary in the use of big data in policies. However, the administrative procedure for the practical use of big data may be more complicated and difficult. Hardware and software technologies that process big data can be procured through global IT technologies, and thus, it may be a rather simple problem, whereas the administrative procedure is fundamentally much more complex.
During the early phases where experience was insufficient, trials and errors were unavoidable. However, based on the experience accumulated by conducting various projects related to big data, such as the selection of the night bus routes and the analysis of the elderly welfare facility sites, Seoul city developed an administrative framework that can efficiently manage big data-related administrative procedures. This was completed in five stages, and divided into 14 activities and 41 tasks. Through this framework verified by the execution of actual projects, Seoul city was able to more efficiently find resolutions by systematically operating the relationship of various parties of interest in any succeeding big data-related projects.
For instance, an intimate cooperation between the department obtaining data and the IT department handling big data was important. Through several education programs and workshops, a bond of sympathy and the will to actively cooperate with one another was formed between the departments and these formed the core elements of achieving a successful project. Furthermore, the priority task was deduced by conducting a big data curator nurturing course, and the problems and difficulties were shared with various external organizations, such as private organizations, academic organizations, and research institutes, in order to collect opinions, and thereby constructing a cooperation network (seoulsolution.go.kr).
Burden of Financial Support
According to the quasi-public bus system agreement, which enforced service enhancement through guaranteed stable management of bus companies and enhanced usage of public transportation by Seoul city from 2004, financial support was provided. The amount of financial support provided to supplement the deficit of local buses reached 1 trillion 469.4 billion won from July 2004 to July 2014. The deficit compensation increased from 94.2 trillion won in 2003 before the enforcement of the quasi-public system to 230 trillion won in 2014, which continually increased since the enforcement of the quasi-public system. It is indicated that one of the reasons for the increase in the financial support cost is that there is no longer a need to modify or cancel the routes of buses displaying poor usage, since financial support is guaranteed for deficits of local buses.
Night buses also display a concentrated usage rate during 1am to 3am, and thus, it is possible that a deficit will result during other times on certain routes. In order for the night bus system to become establish as a system that has steady institutional effects and has the advantage of preventing any additional financial consumption, there would be a need to adjust the interval of buses by considering the time periods.
Reference
- BBC News, “Mobile phone data redraws bus routes in Africa” (by Jane Wakefield), 2013. 5.1.
- Ma, K. K. (2015), Realization of Scientific Administration using Big Data, Regional Informatization, March 4.
- Seoul City, 2014, Traffic Statistics (recited from News Jelly, http://contents.newsjel.ly/issue/seoul_nbus/).
- Seoul City, 2013, Private Corporation-fused Big Data and Public Data, Seoul City Information Planning Group.
- Seong, J. E. & Park, K. R., 2014, Analysis and Implications of Institutional Cases Using Big Data, Scientific Technology Policy 24(2), 94-106.
- Ahn, Y. J. & Kim, S. I., 2014, Promotion of the Future Possibility of Development and the Evaluation of the Usefulness of Big Data: Focused on the Value of Using Big Data in the Public Sector, Korea Digital Design Association Conference, May 2014, pp.445-448.
- http://bus.go.kr/nBusMain.jsp
