Bienvenue dans, Archives des politiques de Séoul

Politique

Projets de développement des sites des logments

Date 2016-10-29 Category Planification urbaine Updater ssunha
Date
2015-06-25
Last Update
2018-01-22

Definition & Background

A housing site development project is a comprehensive land development method implemented by the public sector through active participation in all processes, including land acquisition, development, supply, and management. In December 1980, the Housing Site Development Promotion Act was established to efficiently supply land for apartment houses. By the end of 2006, a total 639.674 million m² were included in estimated housing development districts nationwide with 37.106 million m² in 41 districts in Seoul. Mainly public institutions implemented housing site development projects in downtown Seoul. Since projects are initiated only after sites are purchased, preventing privatization of development gains has been a goal, as well as constructing urban infrastructure and convenience facilities.




<Table 1>  Designation of Housing Site Development Project Districts (as of end of 2006)
                                                                                     (Units: 1,000 m², (%))
Division Total Korea Land Corporation Korea National Housing Corporation Local Government Agency
Nationwide
639,674
(100.00)
344,313
(53.83)
171,325
(26.78)
124,036
(19.39)
Metropolitan Areas of Major Cities
336,123
(100.00)
190,042
(56.54)
88,199
(26.24)
57,882
(17.22)
Seoul
37,106
(100.00)
6,438
(17.35)
7,378
(19.88)
23,290
(62.77

Source: Ministry of Construction & Transportation , 2007, 2007 Housing Business Manual p.160, Housing Seoul, 2008, Internal Data

Changing Characteristics of Housing Site Development Projects

In 1980, the government initiated the 5 Million-Housing Unit Construction Plan and established the Housing Site Development Promotion Act (enacted in December 1980) as part of its efforts to secure land. The establishment of this act enabled a project entity to purchase large amounts of land surrounding major cities at affordable prices and rapidly promote projects in a short period of time. Previously, land readjustment projects were focused on small parcels, not only advantageous for avoiding collective construction of high-density apartment complexes, but also unsuitable for securing large housing sites due to the increase in housing construction costs caused by increased land prices.



The Housing Site Development Promotion Act (the Housing Act) also entails urban planning functions for the Urban Planning Bureau.  The Act enables pre-designation and whole take-over of affordable green zones or farmland.  It also allowing the changing of those areas to residential areas in the development project-planning phase.  It further allowed the acquisition of land at reasonable prices, thereby quickening development. It is consistent with public development in that a public entity purchases the entire land for development to keep development gains out of private hands and in the public sector, where they will be reinvested in housing site development projects.



With the establishment of the Housing Act, housing site development under the Housing Construction Promotion Act (the Promotion Act), which had been actively promoted in the late 1970s, became small-scale development projects, with large-scale development implemented in a way that develops individual complexes under the Promotion Act after housing site development based on the Housing Act. Furthermore, with the establishment of the Housing Act, the government designated approximately 1,000 pyeong in 30 cities as the first estimated housing sites. In 1986, the government prohibited adjustment projects in the Metropolitan area and six major cities, making public development projects under the Housing Act the main method of supplying new housing sites. This sparked active promotion along with the Two Million Housing Unit Construction Plan by the government in 1988. Between the 1980s and 1990s, development of large-scale housing took place in areas such as Gaepo, Godeok, Mokdong, Sanggye, Junggye, Suseo, and five new towns in the Metropolitan area, where individual residential complexes were constructed under the Promotion Act after implementation of housing site development programs with the Housing Act as the applicable Act.



In the late 1980s, the Housing Act actively promoted public development. In 1988, regional corporations were installed in Seoul and Daegu as well as public development agencies in each city and province in the nation to expand public development to local governments, and encourage such actions as donation of development gains to regions and expansion of local finance to facilitate housing site development. With this in mind, Seoul City and local governments began to participate in large-scale public housing site development projects that had been led primarily by housing corporations and land corporations.

<Figure 1> Seoul's Housing Site Development Project Districts

Housing Development Project Districts

<Table 2> Seoul's Housing Site Development Project Districts




Division

Local Government

District

Location

Area
(1,000 m²)

Number of Houses
(Household(s))

District Designation Date

Project Completion

Project Operator

Total



41



33,228

306,451







1980s

Gangdong-gu

Godeok

Godeok-dong

3,148

19,010
31,923

'81. 4

'88.12

Korea Land Corporation

Gangnam-gu

Gaepo 2

Gaepo-dong

335

'81. 4

'82.7

Seoul City

Gangnam-gu

Gaepo 1

Gaepo-dong

1,694

'81. 4

'84.12

Korea Land Corporation

Seocho-gu, Gangnam

Gaepo 3

Gaepo, Yangjae-dong

6,494

800

'81. 4

'88.12

Seoul City

Nowon-gu

Wongae 1

Wolgye-dong

75

800

'82. 2

'83.9

Seoul City

Yangchun-gu

Mok-dong

Mok-dong

4,375

26,629

'83. 6

'95.3

Seoul City

Nowon-gu

Wongae 2

Wolgye-dong

246

4,840

'84. 4

'86.6

Seoul City

Mapo-gu

Sung-san

Sungsan-dong

189

3,710

'84. 4

'86.12

Seoul City

Songpa-gu

Munjung

Munjung-dong

423

4,494

'85. 10

'88.11

Seoul City

Nowon-gu

Sanggye

Sanggye-dong

3,308

39,782

'85. 4

'91.12

Korea National Housing Corporation

Nowon-gu

Junggye

Junggye-dong

1,596

24,865

'85. 4

'92.6

Korea Land Corporation

Dobong-gu

Changdong

Changdong

497

6,500

'86. 7

'92.11

Korea National Housing Corporation

Gangbuk-gu

Bun-dong

Bun-dong

360

6,511

'86. 7

'93.12

Korea National Housing Corporation

Nowon-gu

Junggye 2

Junggye-dong

1,344

16,660

'86.12

'98.12

Seoul City

Nowon-gu

Wolgye 4

Wolgye-dong

150

4,300

'89.12

'94.6

Korea National Housing Corporation

Gangnam-gu

Daechi

Daechi-dong

240

4,198

'89. 3

'96.7

Seoul City

Gangnam-gu

Suseo

Suseo-dong

1,335

16,353

'89. 3

'96.7

Seoul City

Seocho-gu

Woomyeon

Woomyeon-dong

157

2,327

'89. 3

'96.12

Korea National Housing Corporation

1990s

Gangseo-gu

Gayang

Gayang-dong

977

16,462

'89. 5

'96.7

Seoul City

Gangseo-gu

Deungchon

Deungchon-dong

763

12,306

'90. 7

'96.6

Korea National Housing Corporation

Nowon-gu

Shillim

Shillim-dong

27

960

'90. 7

'96.12

Seoul City

Gangseo-gu

Banhwa 2

Banghwa-dong

89

1,995

'90. 9

'96.6

Seoul City

Gangseo-gu

Banghwa

Banghwa-dong

640

8,101

'90. 3

'97.8

Seoul City

Jungang, Nowon-gu

Sinnae

Sinnae Gongreung-dong

1,032

12,007

'90. 3



Seoul City

Nowon-gu

Wolgye 3

Wolgye-dong

203

3,744

90. 9

'97.7

Seoul City

Nowon-gu

Gongreung 1

Gongreung-dong

175

3,420

'90. 9

'97.1

Seoul City

Songpa-gu

Geoyo

Geoyo-dong

184

4,008

'91.12

'98.8

Seoul City

Nowon-gu

Wolgye 6

Wolgye-dong

136

2,475

'91.12

'99.12

Seoul City

Nowon-gu

Wolgye 6

Wolgye-dong

36

981

'91.12

'00.6

Seoul City

Dobong-gu

Changdong 2

Changdong

22

609

'91.12

'00.9

Seoul City

Nowon-gu

Gongreung 2

Gongreung-dong

386

5,365

'91.12



Seoul City

Nowon-gu

Sanggye2

Sanggye-dong

283

4,607

'91.12



Seoul City

Nowon-gu

Sanggye3

Sanggye-dong

54

1,053

'91.12



Seoul City

Gwanak-gu

Bongcheon

Bongcheon-dong

25

564

'91.12



Seoul City

Gangseo-gu

Hwagok

Sinjung-dong

29

625

'92.12

'99.12

Seoul City

Yangchun-gu

Sinjung

Sinjung-dong

122

1,302

'96. 4



Seoul City

Yangchun-gu

Sinjung 2

Sinjung-dong

140

1,800

'96. 4



Seoul City

Dobong-gu

Dobong

Dobong-dong

70

584

'97. 3



Seoul City

Mapo-gu

Sangam

Sangam, Sungsan-dong

1,629

6,307

'97. 3



Seoul City

Yangchun-gu

Sintu-ri

Sinjung-dong

180

3,444

'99.12

00'.6

Seoul City



Source: Urban Planning Bureau of Seoul, 2008, Internal Data





Typical Housing Site Development Project Districts

Gaepo District


In response to the Five-million Housing Unit Construction State Policy initiated by the government, the entire area of Gaepo-dong and Ilwon-dong in Seoul were designated as districts for project implementation in order to supply affordable housing sites to tackle the housing shortage. These areas were chosen to absorb the increase in population expected with the development of Gangnam in the mid-1970s. Gaepo District encompasses Gaepo-dong and Ilwon-dong, Gangnam-gu, Seoul, an area of 1,693,559 m² (512,300 pyeong). The area is located 13 km to the southeast of downtown Seoul, 12 km to the east of the center of the large residential areas in Yeongdeungpo, and 5 km to the northeast of Gwacheon. On April 11, 1981, Gaepo was designated as an estimated housing site development district; development commenced December 24, 1981 and was finished in December 1984. The development master plan included 20% detached housing and 80% multi-family housing to accommodate 23,309 people or 5,287 households. A survey on land compensation was conducted from April to September 1981 to reach an agreement on compensation. The cost of the project was 37.242 billion won, including land (66.7%) and site development costs (33.3%).


Godeok District

Godeok was designated as an estimated housing site development district in April 1981, with construction beginning May 3, 1982 and finishing December 30, 1985. The total area for the project was 3,148,450㎡ and cost 81.294 billion won (49.359 billion won in land costs and 31.935 billion won in site development costs). Godeok district encompassed all of Godeok-dong and Myungil-dong in Gangdong-gu, Seoul, located about 1.6 km to the east of the downtown area and about 2 km from the center of Cheonho-dong. The housing site composition for the Godeok district was intended to accommodate 75,250 people in 18,820 households. The excellent clinical services available in Myungil Park in central and outskirt development prohibited zones were utilized to create suburban-type housing complexes. Residential areas (55.6%) were properly placed with multi-family, detached, and tenement housing units. The size of a detached house was based on 70 pyeong per parcel. Commercial areas (3.4%) were installed in the center of the district, and the public corporation planned the first urban design for commercial areas to ensure the proper placement of business facilities. Land for public use accounted for 33%, which is considered a high proportion. Adequate land for educational facilities provided space for six elementary schools, four middle schools, and six high schools to serve a population of 75,000. The amount of available water supply was 400L per person per day, and intercepting pipelines were installed at Tancheon Sewage Treatment Plant to treat sewage. The Seoul city government covered 11 billion won (16%) of the cost for Tancheon Sewage Treatment Plant to treat the district’s sewage


Junggye District


Junggye district was designated as an estimated housing site development district on April 10, 1985 with construction supervised by the Korea Land Corporation. On October 29, 1985, the Corporation initiated a land compensation program, which obtained development approval on April 2, 1986 and completed construction on June 29, 1992. The total area of the project was 1,597,675 m², with costs totaling 140.369 billion won. Junggye District encompasses all of the Dobong-gu, Junggye-dong, Hagye-dong, and Gongreung-dong areas in Seoul where people mostly owned land from other regions. More than 95% of the residents are the urban poor working at adjacent brickyards, living in greenhouses and board-framed houses. Despite the poor living conditions, a countermeasure committee and a resident representative group was created by residents who were very active in autonomous activities. This served as an important basis for organizing a Multi-family Housing Association, a part of the Junggye District Relocation Plan.

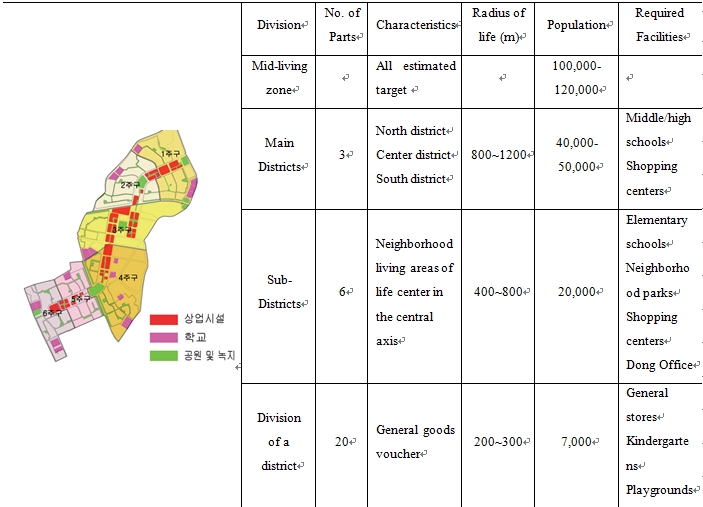

With designs to accommodate 99,460 people, the plan was to organize 866,849 m² (54.4%) of land for housing, and 33,462 m² (2.1%) for commercial purposes, and 692,307 m² (43.5%) for public use. The plan did not include land for single-detached housing. A joint relocation measure was implemented through close coordination with the nearby Korea National Housing Corporation and Sanggye district and was the first district where land development was implemented by both public and private entities. It was the first public district to receive multi-housing land because the single-unit houses needed for migration measures were impossible to secure as the development was implemented in public districts only.

Promotion of Housing Site Development Projects

Procedure


When a housing–site-development project is proposed by a project operator such as the government, local government agencies, the Korea Land Corporation, the Korea National Housing Corporation, or regional corporations, the relevant site will be estimated for designation as a housing development district through review by the Housing Policy Committee. A public announcement of the proposal will be made, the opinions of the relevant local government agency and residents considered, and consultation held between the Central Administration Organization and the Ministry of Land, Transport & Maritime Affairs. From 2000, when a specific area is designated or rejected as an estimated housing development district, the area would be deemed designated or rejected as a Type 1 District-unit Planning Area in accordance with Article 51 of the National Land Planning & Utilization Act. When a district is designated for development, land would be supplied according to the housing site development plans, implementation plans, and housing site supply plans. While mayors and governors have the power to approve proposals, only the Ministry of Land, Transport & Maritime Affairs has the authority to approve housing site development plans for districts of 200,000 m² or more and districts of 330,000 m² or more.

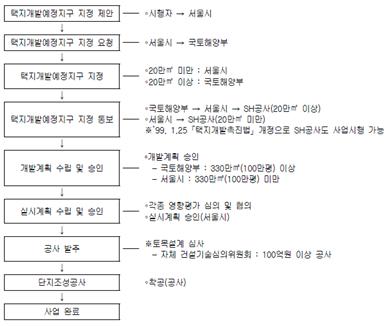

 <Figure 2> Procedure for Housing Site Development in Seoul

Proposal for estimated housing development districts • Operator → Seoul City
Request for estimated housing development districts • Seoul City → Ministry of Land, Transport & Maritime Affairs
Designation of estimated housing development districts • Under 20 m²: Seoul City
• 20 m² or more: Ministry of Land, Transport & Maritime Affairs
Notification of designation of estimated housing development districts • Ministry of Land, Transport & Maritime Affairs → Seoul City → SH Corporation (20 m² or more)
• Seoul City → SH Corporation (Under 20 m²)
※ SH Corporation can implement projects with establishment of the Housing Site Development Promotion Act in Jan. 25, 1999

Establishment and approval of development plans • Development plan approved
- Ministry of Land, Transport & Maritime Affairs : 3,330,000 m2 (1,000,000 pyeong) or more
- Seoul City : Under 3,330,000 m2 (1,000,000 pyeong)
Establishment and approval of implementation plans • Review of and consultation on various aspects
• Implementation plan approval (Seoul City)
Order issued by corporation ※ Civil engineering review
- by autonomous Construction Technology Review Committee : construction costing 10 billion won or more
Construction of complex Commencement (construction)
Project completed

Housing Site Development Processing Standard


 The purpose of housing site development projects is to supply land for mass housing in response to rapid urbanization.  Housing site development plans are established in accordance with the Housing Site Development Guidelines. These guidelines set standards for the distribution of housing construction land, the housing allocation for each size of lot for multi-family housing, the method of supplying housing sites, and supply prices.

<Table 3> Ratios for Allocation of Housing Construction Land

Area

Use of Land for Multi-family Housing

Single-detached Housing Construction Land

Apartment Complexes

Tenement /Multi-household Housing

1. Metropolitan Seoul and Busan

60% minimum

20% maximum

1. Metropolitan Seoul and Busan

2. Metropolitan Areas
(Except  Busan and Incheon)

40% minimum

20% maximum

2. Metropolitan Areas
(Except Busan and Incheon)

3. City Areas

50% minimum

50% maximum

4. Other Areas

The entity with authority to approve housing site development projects will be determined by regional conditions.









Note:  For no. 1, 2 & 3 above, the entity with authority to approve housing site development projects may adjust the allocation ratio within a 20% range based on regional conditions
Source: Article 13, Housing Site Development Guidelines

Land to be designated for construction of multi-family housing is chosen according to the size needed for a certain number of families, unit sizes in the pyeong, the number of floors to be built, and the floor area ratio (FAR) for each household. Areas for construction of single detached housing are to be developed in parcel units of 165~660 m² per piece of land. In metropolitan areas, apartment complexes were to be constructed on at least 60% of development sites, a maximum of 20% for tenement /multi-household buildings, and a maximum of 20% for single detached housing. Within Seoul, land for single detached housing is rarely provided.



In September 1989, land was provided to supply 20-50% of multi-family housing land for public lease housing construction. Permanent lease housing and 50-year Public Lease Housing were mainly constructed from 1989 to 1990, and 5-year Public Lease Housing from 1990 to 2003.

<Table 4> Supply Standard for Rental Housing Construction Land



Details of Transition

Sept. 1989

╴Minimum 30% of land for construction of multi-family housing

Nov. 1990

╴Minimum 20% of land for construction of multi-family housing

Dec. 2003

╴Minimum 40% of land for construction of multi-family housing

Source: Korea Land Corporation, 2007, Housing Site Development Guidelines



The size of housing to be constructed on land for construction of multi-family housing was regulated at 30% or more if it was 60㎡ and under, 60% or more if it was is 85㎡ and under, and under 40% if it was more than 85㎡. However, the entity authorized to approve housing site development projects may adjust these percentages within a 10% range when deemed necessary based on regional conditions.

<Table 5> Allocation Percentage for Dwelling Scale of Multi-family Housing Construction Land

Period

60㎡ or less

85㎡ or less

More than 85㎡

Aug. 1995

30-50%

╴70% or more including 60㎡ or below

╴Below 30%

Feb. 1996

╴ Metropolitan areas and Metropolitan cities: 30% or more
- Other Areas: 20% or more

╴60% or more including 60㎡ or below

╴Below 40%

Jan. 1998

╴The Metropolitan areas and Metropolitan cities: 30% or more
- Other Areas: 20% or more

╴60% or more including 60㎡ or below

╴Below 40%

Dec. 1998

╴The Metropolitan areas and Metropolitan cities: 30% or more
- Other Areas: 20% or more

╴50% or more including 60㎡ or below

╴Below 50%

Aug. 2001

╴The Metropolitan areas and Metropolitan cities: 30% or more
- Other Areas: 20% or more

╴60% or more including 60㎡ or below exclusive

╴Below 40%

Note: Starting from 1998, the entity authorized to approve housing site development projects may adjust the percentages within a 10% range considering regional conditions.
Source: Article 13 of Housing Site Development Guidelines


Competitive bid prices vary within 60% of construction costs in accordance with the usage of housing site supply prices. In Seoul and the metropolitan area, land for construction of lease housing provided in lots of 85 m² or less is provided at 60-85% of construction costs, building plots for housing units of 60 m² or below is provided at 95% of construction costs, public land is provided at 100% of construction costs, and housing construction land in lots of 60-85 m² is provided at 110% of construction costs. Commercial land is provided according to competitive bids and other sites according to appraisals.

<Table 6> Housing Land Supply According to Application & Supply Price (Based on End Users)

Application

Supply Method

Supply Price (Remarks)

Commercial site

Competitive bid

╴Bid

Supermarkets

Competitive bid

╴Bid

Religious buildings

Lottery

╴Appraised value

Kindergartens

Lottery

╴ Appraised

Public government buildings

Private contract

- Construction cost

Parking lots

Competitive bid

╴ Bid

Parking lots

Lottery

╴ Appraised

Medical centers

Lottery

╴ Appraised value

Telecommunications facilities

Private contract

╴ Appraised value

Comprehensive energy facilities

Private contract

╴ Appraised value

Power supply equipment

Private contract

╴ Appraised value

Urban factories, integrated facilities of venture enterprises, software business facilities

Private contract

╴ Appraised value

Agriculture-related facilities

Lottery

╴ Appraised value

Social welfare facilities

Private contract
Private contract

╴Construction cost (social welfare corporations)
╴ Appraised value

Note 1. If a large housing site project (at least 3.3 million m²) is developed as new town construction, some of the aforementioned standard may be adjusted in special cases.
Note 2. Electricity, toxin, and gas may be provided at construction cost if the receiver is subject to the Framework Act on Management of Government-Invested Institutions.
Source: Article 13, Housing Site Development Guidelines


Management of Housing Site Development Projects

With the revisions to the National Land Planning & Utilization Act in 2000, management of housing development sites and projects changed to a district-unit plan. This revision requires that districts designated for housing development projects include district-unit plans upon approval of the project implementation plan, and also gives details related to the Type 1 District-unit Plan and plans for implementation.



The development of housing site projects were mainly focused on apartment complexes; hence, it is necessary to be prepared for individual reconstruction and remodeling projects through a district-unit plan than that of Redevelopment Master Plan of Urban Central and Residential Areas. Development FAR requires continuous management after project completion to prevent overload of infrastructure at the initial planning phase.

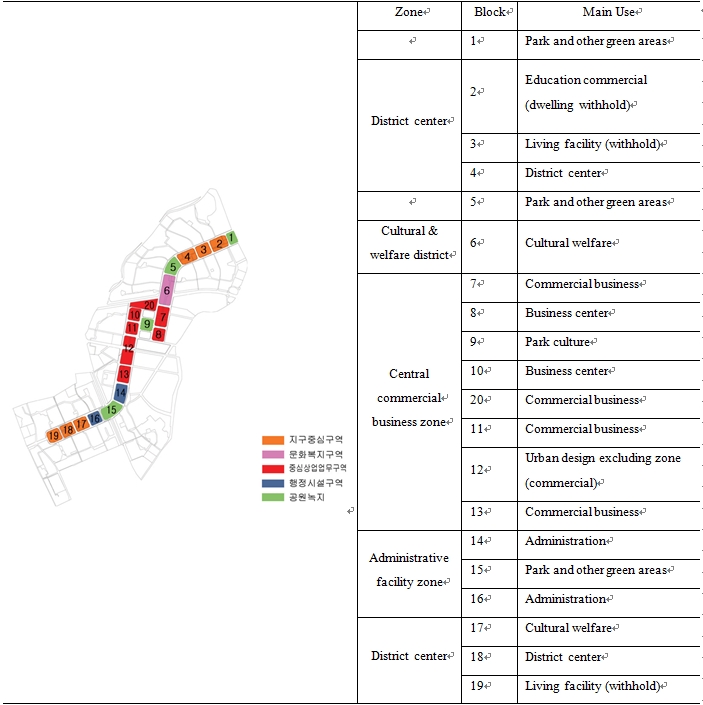

Housing Site Development Project: Mok-dong District

Overview



Mok-dong district spans Yangcheon-gu Mok 1-dong, Mok 5-dong, Mok 6-dong, Sinjung 1-dong, Sinjung 2-dong, and Sinjung 6-dong. It was a large “new town” geared towards apartment complexes and features the Anyang stream, Mok-dong Sports Stadium, unique green zones and neighborhood parks within apartment complexes equipped with sports facilities.
The district complex has great access to the subway system (lines 2, 5 and 7); however the station is located on the outskirt of the complex thus public transportation is not readily available. Kyongin Expressway goes through the district, and the area also includes Nambu Sunhwan-ro․ Seobu Expressway․ and Sindorim Overpass. However, traffic is congested on the Kyongin Expressway, Omok-ro, and Sinjung-ro arterial highways.


Appointment of Estimated Housing Site Development Districts


In April 1983, Seoul City announced its Southwest Regional Development Plan to create high-density residential complexes in the Mok-dong district. In May, the city requested housing site development districts for an estimated 4,375,000 m² (1,323,000 pyeong) of the Mok-dong district. The assignment request was approved in June. The purpose of the proposal was to boost stagnated areas and embody multi-core downtown development of the Mok-dong district centered as a large living zone in the Southwest region.  Furthermore, the proposal was aimed at alleviating the housing shortage by supplying a large number of apartment complexes through large-scale housing site development.
After applying for district designation, Seoul City announced that its Mok-dong Newtown Development Plan would implement parcel and rental in a 2:1 ratio, including 25,000 apartment units of between 66 m² (20 pyeong) - 181 m² (55 pyeong) with the philosophy of initiating a "world-class new town construction idea". In addition, the plan included 11 schools (five elementary), regional heating from a new combined heat and power plant, and a public design contest for the construction master planning of Mok-dong New Town.



The Mok-dong district development began in April 1984 with apartment complex construction and was completed in November 1989. In 1988, Yangcheon-gu was separated from Gangseo-gu, and construction of the central axis and the strategic means of Mok-dong district development began. The central axis of Mok-dong new town was in a form where the central axis of the Hook new town plan was bent in the letter S and the two piled alongside. The central axis is a strip 150m wide, 4.5 km long, and covers an area of 607,000 m² (184,000 pyeong) that connects south and north, where a linear traffic system is planned to properly connect each major gu district.


<Table 7> History of Mok-dong District Development

Period Details Remarks
May 1983 Request for housing site development district estimation

Jun. 1983 - Housing site development district estimated ╴Notice No. 201 of the Ministry of Construction & Transportation
Sept. 1983 - Approval granted for housing site development plan

Oct. 1983 ╴Housing site development project implementation plan submitted for approval

Nov. 1983 - Housing site development plan approved ╴ Notice No. 373 of the Ministry of Construction & Transportation
Jan. 1984 ╴Housing site development project implementation plan approved ╴4,375,000 ㎡(1,323,000 pyeong)
Mar. 1984 - Master Plan for housing site development project approved

Jul. 1984 ╴Passed deliberation of the Central Design Council of the Ministry of Construction and Transportation's ╴Seoul City Notice No. 995
Mar. 1995 - Housing site development projects complete

2006 - Redevelopment of the district-unit planning of the central district


Source: Seoul Special City, 1991, An Evaluation of Mok-dong Public Development, p.881~888



Characteristics of the Mok-dong Housing Site Development Plan


Mok-dong district is the central part of the Gangseo region. The project in this area was modeled after the linear central axis planning in the Hook Newtown Proposal (1961), with an aim of mitigating the housing shortage and stabilizing housing prices, using development profits for public development of high density residential complexes, reinvestment of collected funds, and trial urban infrastructure.



Planning Characteristics: Composition of Linear & Overlapping Living Zones
The Mok-dong district is a “living zone” concept focused on the central commercial district. The living zones are classified into three main districts, six sub-districts, and 20 divisions through a linear arrangement of the commercial areas. The plan was intended to provide opportunities to select various services and satisfy the needs of the residents by overlapping high, medium and low quality living zones on the central axis of a linear alignment.


<Table 8> Classification of Mok-dong District Living Zones

Commercial Facilities
Schools
Parks & Green Zones


Multi-family Housing Complex: Low-density focused on medium and large housing
The residential area of the Mok-dong district consists of 14 districts, with the number of households accommodated in each district varying from 1,902 households and 1,300 to 3,100 households. The units are medium-large and were provided mainly for middle-class residents. In terms of distribution by size, units of a maximum 60 m² in area account for 22.5%, a maximum of 85 m² account for 35.8%, and above 85 m² account for 41.7% and 77.5% account for 85㎡ or more. Specifically, large units (above 85 m²) account for 50% of complexes 1, 2, 3, 5, 9, and 13.


<Table 9> Mok-dong District Housing Unit Sizes


Area Total Maximum of
60 m²
Maximum of
85 m²
Above 85 m²
Complex1
1,882
(100.0)
240
(12.8)
502
(26.7)
1,140
(60.6)
Complex 2
1,640
(100.0)
-
400
(24.4)
1,240
(75.6)
Complex 3
1,588
(100.0)
-
646
(40.7)
942
(59.3)
Complex 4
1,382
(100.0)
594
(43.0)
240
(17.4)
548
(39.7)
Complex 5
1,848
(100.0)
-
525
(28.4)
1,323
(71.6)
Complex 6
1,362
(100.0)
594
(43.6)
240
(17.6)
528
(38.0)
Complex 7
2,550
(100.0)
720
(28.2)
1,200
(47.1)
630
(24.7)
Complex 8
1,352
(100.0)
834
(61.7)
278
(20.6)
240
(17.8)
Complex 9
2,030
(100.0)
240
(11.8)
621
(30.6)
1,169
(57.6)
Complex 10
2,160
(100.0)
570
(26.4)
584
(27.0)
1,006
(46.7)
Complex 11
1,595
(100.0)
760
(47.6)
835
(52.4)
-
Complex 12
1,860
(100.0)
470
(25.3)
1,390
(74.7)
-
Complex 13
2,280
(100.0)
240
(10.5)
804
(35.3)
1,236
(54.2)
Complex 14
3,100
(100.0)
720
(23.2)
1,270
(41.0)
1,110
(35.8)
Total
26,629
(100.0)
5,982
(22.5)
9,535
(35.8)
11.112
(41.7)















Note: Lease housing overlap with housing sizes due to supply amount of each complex.
Source: Seoul City, 1991, An Evaluation of Mok-dong Public Development, p.940-941


Apartment buildings were constructed sequentially from 1985 to 1988.  All buildings today are 20 years old or more. Reconstruction became possible in 2013, but demand did not materialize. The average floor area ratio is 143% and varies by complex from 117.2 to 164.5%. FAR by complex is within 120% (excluding complexes 8, 13, and 14), and the average density per household is 130.7 units/ha, which is extremely low.

The number of parking spaces available per household is 0.6, which is far below one space for every household, suggesting a very serious parking problem.



<Table 10> Mok-dong District Complexes: Vehicles & Parking Spaces Per Household

  Households
(Parcel + Lease)
Parking Spaces Parking Spaces per Household
Complex 1
1,882
1,104
0.6
Complex 2
1,640
1,306
0.8
Complex 3
1,588
1,199
0.8
Complex 4
1,382
757
0.5
Complex 5
1,848
1,444
0.8
Complex 6
1,362
783
0.6
Complex 7
2,550
(2,130 +420)
1,251
0.5
Complex 8
1,352
617
0.5
Complex 9
2,030
1,466
0.7
Complex 10
2,160
(1,560+600)
1,397
0.6
Complex 11
1,595
646
0.4
Complex 12
1,860
873
0.5
Complex 13
2,280
1,625
0.7
Complex 14
3,100
(810+2,290)
1,879
0.6
Total
26,629
(18,512+8,117)
16,347
0.66
















Note: Vehicles per household = Available parking spaces/ Number of households
Source: Seoul City, 1991, An Evaluation of Mok-dong Public Development, p.579


Central Commercial Area: Large-scale parcel & Postponement of Sales Causes Delay in Revitalization

All of the Mok-dong district’s central facilities are located on the central axis, and the district center of an aggregated neighborhood is nearby the south and north, while commercial business facilities as in the CBD (Central Business District) are located in the center. General administration, public and cultural welfare facilities are located between the complexes. In terms of the central commercial area, business facilities account for 31.3% based on plottage, high-rise apartments account for 29.0%, and culture convention facilities account for 8.9%. However, high-rise apartment complexes account for 46.9% based on total floor area with the construction of these types of complexes following the Asian financial crisis in the late 1990s. Despite the claim that the Mok-dong district is the central living zone in the Southwest area, the number of businesses in the Mok-dong district is extremely low when compared to Seoul City. This is due to the outright sale of central commercial land, which was sufficient with 14.0 businesses and 89.0 business people per 10,000 m².



 <Table 11> Mok-dong District: Functions & Facilities by Central Commercial Block

Central District Area
Culture & Welfare Area
Central & Commercial Area
Administrative Facility Area
Green Zone
Source: Seoul City, 1991, An Evaluation of Mok-dong Public Development, p.68

Transportation: Worsening stagnation of central roads from Increased Through Traffic


Road networks in the Mok-dong district consist of three arterial roads and outer rings that pass through the inside of the district as well as an internal beltway. One of the most notable features of the road network is the one-way beltway of the central axis. The one-way feature allows left turns without the need for traffic signals and signal interlocking reduces through traffic travel time. In terms of road design, level crossings with local distribution roads and multi-level crossings using underground roads, such as the Jaemulpo-ro, and Omok-ro, (Mok-dong central axis and arterial roads) stand out.



Measures are needed to improve traffic flow in preparation for an increase in through traffic on district arterial roads to the Mok-dong central axis due to the development and traffic volume concentrated around the central axis road, the Mok-dong East and West roads, and Jaemulpo-ro, all of which penetrate Mok-dong district. On Jaemulpo-ro, traffic will be concentrated from Yeouido and Downtown Seoul and from Incheon and Bucheon, while congestion will occur on the Mok-dong central axis road due to through traffic from outer ring areas connected to Sinwol-ro and Sinjung-ro.

<Figure 3> Mok-dong District: Road Network & Traffic Volume

General

A housing site development project is where the government or public institution provides real estate, develop sites, and builds housing in order to sell or lease to end users. Development projects have contributed to real-estate price stability (unlike land readjustment projects) because development profits from the public sector and some from the private sector were absorbed instead of using to buy more land (and drive up prices) and because project operation is limited to public entities. The public sector chooses affordable real estate and develops the site, while a private company constructs housing on the site, enabling more effective management of problems such as excessive speculation from private sector project operation.



Since housing development projects limit project operators as public entities, such method was effective in stabilizing housing prices through affordable land supply and development gains absorbed by the public sector unlike the last land readjustment projects. Systematic organization of “new towns” with public facilities and infrastructure also contributed to urban development. Despite the construction of infrastructure in accordance with service facility installation through housing site development projects, social and economic changes rendered this insufficient. The rules for landscaping, construction of rest areas within green zones, parking lots, nurseries, sports facilities, and other neighborhood infrastructure were different in the 1980s from today. The lack of adequate parking lots was the most serious issue.  There was no required ratio of unit size to number of parking space ratio in the early 1980s, and did not come until later: 0 vehicles for up to 40 m², 0.4-0.6 vehicle for 40-85 m², and 1.0-2.0 vehicles for more than 85 m². Standards today are one or more spaces per household, but the lack of parking spaces is an ongoing problem for buildings constructed in the 1980s.



<Table 12> Land Readjustment Projects, Urban Development Projects, & Housing Site Development Projects: A Comparison
  Land Readjustment Projects
(Urban development projects based on replotting)
Housing Site Development Projects Urban Development Projects
Purpose Promotion of land utility
Redevelopment of public facilities
Solve urgent housing shortage Urban development of complex functions
Applicable Act Land Compartmentalization & Rearrangement Projects Act Housing Site Development Promotion Act Urban Development Act
Project Site Land readjustment project district Estimated housing site development district Urban development districts
Project Operator Land owner association
Central & local government
Korea National Housing Corporation
Korea Land Corporation
Government, local government agency
Korea Land Corporation Korea National Housing Corporation
Regional corporations and public-private corporations
Government, local government agency
Joint-investment corporation
Individual landowners or association
Project Method Replotting Whole take-over Choose either whole take-over, replotting, or a mix of both
Land Supply Replotting after reduction of house lot size Supply to construction companies at cost of construction or less Depended on project methods
Funding Provided by landowners Provided by project operator Indirect government support
Provided by project operator
Infrastructure Lack of clarity on entity responsible for construction Lack of clarity on entity responsible for construction Specifies entity responsible for construction
Development Profits Privatizes development gains Returned to society Returned to society
Development Pattern Low-density, low-rise buildings High-density, high-rise buildings High-density, high-rise buildings
Advantages No investment burden
Reduced civil complaints
Supplied affordable housing sites
Returned development profits to society
Systematic development and efficient use of land
Urban development of complex functions
Private-sector participation
Clarification of responsibility for infrastructure
Disadvantages Delayed project completion due to conflict between owners
Increased real estate prices and speculation
Civil complaints by existing landowners
Increased financial burden of project operators
Expansion of local money supply due to excessive compensation for land → Increased real estate prices and speculation
Project target site relatively limited
Private developers find it difficult to secure project target sites

Source: Won Dong-il, Ahn Hyung-soon, Kang Jun-mo, 2005, “A Comparative Study on the Changes in Land Policy & Residential Development Systems of South Korea and China”, Korea Planners Association, 2005 Regular Journal (11. 4~5) Sourcebook p.432

References

The Ministry of Construction & Transportation, 2007, 2007 Housing Business Manual, p.160, Housing Seoul, 2008, Internal Data
The Ministry of Land, Infrastructure & Transport, Department of New Town Housing Site Development, 2014, Housing Site Development Guidelines Article 13
Kim Jung-ho and Bae Soon-seok el al., 1994, “A Study on the Development Strategy of the Housing Development and Supply System”, Korea National Housing Corporation
Korea National Housing Corporation, 1992, 30 year anniversary of Korea National Housing Corporation book
Seoul City, 1991, “An Evaluation of Mok-dong Public Development”
Urban Planning Bureau of Seoul, 2008, Internal Data
Seoul City, 1991, “An Evaluation of Mok-dong Public Development”
The Seoul Institute, 2009, “Analysis & Evaluation of Large Development Projects in Seoul”
Sohn Jung-mok, 2000, “Construction of Five Million Housing Units & Mok-dong New Town Development”,「The Territory」, Korea Research Institute for Human Settlements
Won Dong-il, Ahn Hyung-soon, Kang Jun-mo, 2005, “A Comparative Study on the Changes in Land Policy & Residential Development Systems of South Korea and China”, Korea Planners Association, 2005 Regular Journal (11. 4~5) Sourcebook p.432
Lim Suh-hwan, 1995, Development & Issues in Housing Site Development Policy, Focused on the 1970s and 1980s: Seeking New Space & Environmental Theory, Hanwool
Korea Land Corporation, 2007, Housing Development Manual
Hong In-oak, 1987, “Significance & Evaluation of Residential Development Process through Public Development: A Case Study of Mok-dong New Town, Master's Thesis for Seoul National University
